Hydraulic Broom (Sweeper)
It can be attached to tractors, loaders or forklifts. To make sweeping more powerful we use PP convoluted brush rings. Moreover, it can be used on rough road works job with or without the use of dust collecting hopper.
Technical Specifications
This includes the following items.
- Mounting / Towing :- Tractor Back Side
- Tractor Hyd. Max, Operating Pressure :- 160 Bar
- Sweeping Speed :- 10 to 15 km / Hour
- Working & Sweeping Width: - 2.25 Mtr.
- Brush: - Nylon Bristles.
- Brush 26 Nos.
- Tyres. 2 NOS. (Pneumatic Tyres wheels.)
- Fabricated Chassis.
- Brush Adjustment Assembly.
- Hyd. Motor 1 NOS.
- Hyd. Pipe 2 nos.
- Bearing pedestal
- Dust Collection: - ROAD LEFT SIDE
- Hydraulic Broom Machine Wight 895 Kg.
- Suitable for: - Wet mixed macadam Surface, Road Cleaning, Steel Road Surface, Apollo hydraulic road broomer brush, Remove Fine Particulars From Pot Holes, Paver Block Cleaning. Asphalted road Surface, Ect.

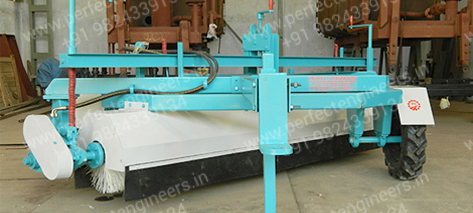

Mechanical Broomer
We are proficient company engaged in manufacturing & supplying wide array of Mechanical
Broomer, It is
useful for transportation purpose for different types of vehicles.The well known sweeper
machine is ideal
for sweeping in forward direction.To make the operation easy we provide the anti guards so
that the
operators get the excellent visibility. To make the work efficiently we are providing the
screws for
adjustment of the pressure to the brush.
Broom (Sweeper)Towing Armament TractorWhich includes the following items.
- 2. 2.5Mtr. Sweeping Nylon Bristles.
- Tyres. 2 NOS.
- Fabricated Chassis.
- Brush Adjustment Assembly.
- Bevel Gear.
- Brush 26 nos. Od. 485m.m.
- Bearing pedestal
- Dust Collection: -in road Left Side
- Suitable for :- Wet mixed macadam Surface, Asphalted road Surface, Ect.
Hydraulic Road Boomer With Bucket
Technical Specifications
Hydraulic Broom (Sweeper) Which
includes the
following
items.
- 2. Mtr. Sweeping Nylon Bristles.
- Tyres. 2 NOS. (Two heavy caster wheels. Size 10“)
- Fabricated Chassis.
- Brush Adjustment Assembly.
- Hyd. Motor 1 NOS.
- Brush 13 nos.
- Hyd. Pipe
- Bearing pedestal
- Dust Collection: -in Bucket Of Capacity 200 kg.
- Suitable for :- Wet mixed macadam Surface, Asphalted road Surface , Ect.

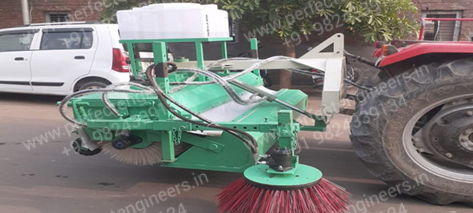

Hydraulic Road Broomer With Bucket, Side Brush & Water Spray System
Technical Specifications
This includes the following items.
- Mounting / Towing :- Tractor Back Side
- Tractor Hyd. Max, Operating Pressure :- 160 Bar
- Sweeping Speed :- 10 to 15 km / Hour
- Working & Sweeping Width: - 2. Mtr.
- Brush: - Nylon Bristles. Dia 585 m.m.
- Brush 13 nos.
- Tyres. 2 NOS. (Two heavy caster wheels. Size 10 “)
- Fabricated Chassis.
- Bearing pedestal
- Brush Adjustment Assembly.
- Hyd. Motor 1 NOS.
- Hydraulic Pipe,
- Hydraulic Cylinder & Control Valve
- Dust Collection: -in Bucket Of Capacity 200 kg.
- Side brush & water spray system installed machine.
- Every buyer’s optional also purchase like without side brush or water spray system.
- Side brush adjustable.
- Removable... Non faction stop possible.
- Tractor capacity requires 45 hp minimum.
- Its same basic model, but only side brush & water spry optional.
- Net Weight Hydraulic Broom :- 675 Kg. approximately
- Suitable for: - Wet mixed macadam Surface, Road Cleaning, Steel Road Surface, remove Fine Particulars From Pot Holes, Paver Block Cleaning. Asphalted road Surface, Ect.
